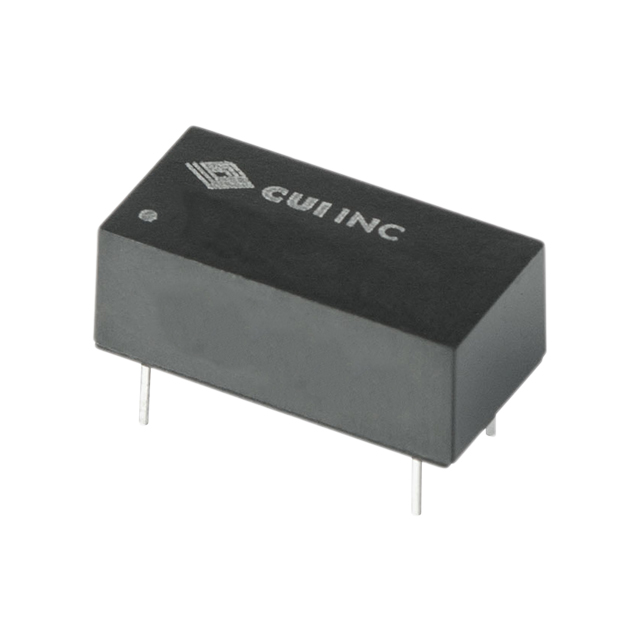

PEM2-S24-D15-D
External/Internal DC DC Converters
PEM2-S24-D15-D
50-PEM2-S24-D15-D
PEM2-S24-D15-D
In Stock : 40
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $9.65000
- $9.65
- 10+
- $9.57700
- $95.77
- 100+
- $9.42960
- $942.96
- 1000+
- $9.13500
- $9135
ADD TO CART
QUICK ORDER
$9.65000
$9.65
PEM2-S24-D15-D Description
PEM2-D (2W) Series, RoHS Compliant
Tech Specifications
Unit Weight
0.084658 oz
Typical Input Voltage (V)
24
Minimum Isolation Voltage
3000VDC
Product
Isolated
PPAP
No
Product Status
Obsolete
RoHS
RoHS Compliant By Exemption
Automotive
No
Current - Output (Max)
67mA, 67mA
Industry
Industrial
Voltage - Input (Min)
21.6V
Supplier Package
DIP Module
Line Regulation
1.2%
Package / Case
14-DIP Module, 6 Leads
Switching Frequency (kHz)
300
Efficiency
84%
Maximum Input Voltage (V)
26.4
REACH Status
REACH Unaffected
Product Weight (g)
2.4
EU RoHS
Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Isolation Voltage
3 kV
Input/Output Type
DC/DC
Operating Temperature
-40°C ~ 105°C
Output Power
2 W
Voltage - Output 2
-15V
Voltage - Output 3
-
Voltage - Isolation
3 kV
Approval Agency
CB Scheme, EN, IEC, UL
ECCN
EAR99
Input Voltage
21.6 V to 26.4 V
Voltage - Output 1
15V
Mounting Type
Through Hole
Size / Dimension
0.79" L x 0.39" W x 0.32" H (20.1mm x 9.9mm x 8.2mm)
Standard Package Name
DIP
Pin Count
6
Mounting
Through Hole
Power (Watts)
2 W
Control Features
-
Output Power (W)
2
Standard Number
55024; 55032 Class A; 60950-1
Output Voltage (V)
-15|15
HTSUS
8504.40.9580
Package
Tube
Load Regulation
7%(Typ)
Output Current (A)
-0.067|0.067
USHTS
8504409580
Efficiency (%)
84(Typ)
Minimum Input Voltage (V)
21.6
PCB changed
6
HTS
PEM2-S24-D15-D
Output Type
Fixed
Voltage - Input (Max)
26.4V
ECCN (US)
EAR99
Output Current-Channel 1
67 mA
Input Voltage - Max
26.4 V
Output Current-Channel 2
67 mA
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
105
Input Voltage - Min
21.6 V
Package Height
8.2
Mfr
CUI Inc.
Height
8.2 mm (0.323 in)
Features
SCP
Maximum Operating Temperature
+ 105 C
Width
10.16 mm (0.4 in)
RoHS Status
RoHS Compliant
Mounting Style
Through Hole
Output Voltage-Channel 1
15 V
Output Voltage-Channel 2
- 15 V
Applications
ITE (Commercial)
Input Voltage, Nominal
24 V
Package Length
20.32
Minimum Operating Temperature
- 40 C
Number of Outputs
2
Series
PEM2-D (2W)
Type
Isolated Module
Length
20.32 mm (0.8 in)
Part Status
Obsolete
Isolation
Isolated
Switching Regulator
Yes
Package Width
10.16
Base Product Number
PEM2-S24
