CUI Inc.

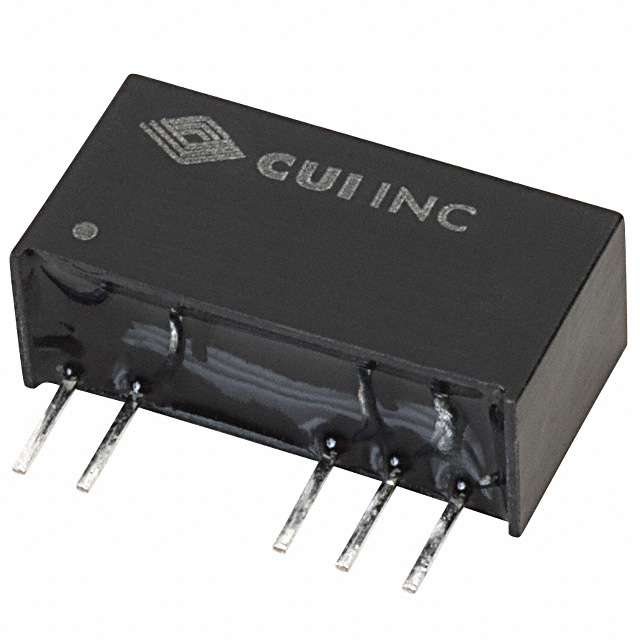

PEM2-S24-D5-S
External/Internal DC DC Converters
PEM2-S24-D5-S
50-PEM2-S24-D5-S
PEM2-S24-D5-S
In Stock : 25
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $8.83000
- $8.83
- 10+
- $8.70400
- $87.04
- 100+
- $8.57800
- $857.8
- 1000+
- $8.32520
- $8325.2
ADD TO CART
QUICK ORDER
$8.83000
$8.83
PEM2-S24-D5-S Description
PEM2-S (2W) Series, RoHS Compliant
Tech Specifications
Unit Weight
0.084658 oz
Product
Isolated
Product Status
Last Time Buy
RoHS
RoHS Compliant By Exemption
Current - Output (Max)
200mA, 200mA
Industry
Industrial
Voltage - Input (Min)
21.6V
Package / Case
7-SIP Module, 5 Leads
Efficiency
84%
REACH Status
REACH Unaffected
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Isolation Voltage
3 kV
Operating Temperature
-40°C ~ 105°C
Output Power
2 W
Voltage - Output 2
-5V
Voltage - Output 3
-
Voltage - Isolation
3 kV
Approval Agency
CB Scheme, EN, IEC, UL
ECCN
EAR99
Input Voltage
21.6 V to 26.4 V
Voltage - Output 1
5V
Mounting Type
Through Hole
Size / Dimension
0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Power (Watts)
2 W
Control Features
-
Standard Number
55024; 55032 Class A; 60950-1
HTSUS
8504.40.9580
Package
Tube
USHTS
8504409580
Voltage - Input (Max)
26.4V
Output Current-Channel 1
200 mA
Input Voltage - Max
26.4 V
Output Current-Channel 2
200 mA
Input Voltage - Min
21.6 V
Mfr
CUI Inc.
Height
10.16 mm (0.4 in)
Features
SCP
Maximum Operating Temperature
+ 105 C
Width
7.05 mm (0.278 in)
RoHS Status
RoHS Compliant
Mounting Style
Through Hole
Output Voltage-Channel 1
5 V
Output Voltage-Channel 2
- 5 V
Applications
ITE (Commercial)
Input Voltage, Nominal
24 V
Minimum Operating Temperature
- 40 C
Number of Outputs
2
Series
PEM2-S (2W)
Type
Isolated Module
Length
19.65 mm (0.774 in)
Base Product Number
PEM2-S24
PEM2-S24-D5-S Documents
Download datasheets PEM2-S24-D5-S
