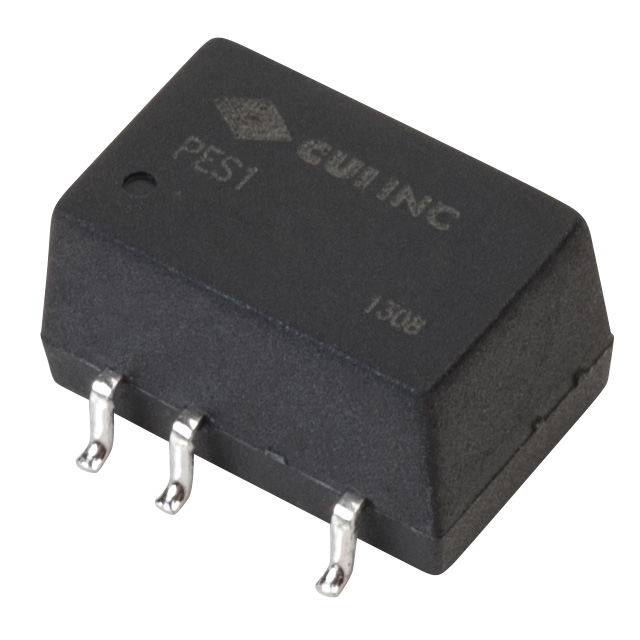

PES1-S24-S24-M-TR
External/Internal DC DC Converters
PES1-S24-S24-M-TR
50-PES1-S24-S24-M-TR
PES1-S24-S24-M-TR
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
PES1-S24-S24-M-TR Description
PES1-M (1W) Series, RoHS Compliant
Tech Specifications
Unit Weight
0.056438 oz
Product
Isolated
Product Status
Last Time Buy
RoHS
RoHS Compliant By Exemption
Current - Output (Max)
42mA
Industry
Medical, Industrial
Voltage - Input (Min)
21.6V
Package / Case
8-SMD Module, 5 Leads
Efficiency
81%
REACH Status
REACH Affected
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Isolation Voltage
3 kV
Operating Temperature
-40°C ~ 105°C (With Derating)
Output Power
1 W
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Isolation
3 kV
Approval Agency
EN, UL
ECCN
EAR99
Input Voltage
21.6 V to 26.4 V
Voltage - Output 1
24V
Mounting Type
Surface Mount
Size / Dimension
0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)
Power (Watts)
1 W
Control Features
-
Standard Number
55024; 55032 Class A; 60950-1
HTSUS
8504.40.9580
Package
Tape & Reel (TR)
USHTS
8504409580
Voltage - Input (Max)
26.4V
Output Current-Channel 1
42 mA
Input Voltage - Max
26.4 V
Input Voltage - Min
21.6 V
Mfr
CUI Inc.
Height
7.25 mm
Features
SCP
Maximum Operating Temperature
+ 105 C
Width
8.3 mm
RoHS Status
RoHS Compliant
Mounting Style
SMD/SMT
Output Voltage-Channel 1
24 V
Applications
ITE (Commercial)
Input Voltage, Nominal
24 V
Minimum Operating Temperature
- 40 C
Number of Outputs
1
Series
PES1-M (1W)
Type
Isolated Module
Length
12.7 mm
Base Product Number
PES1-S24
