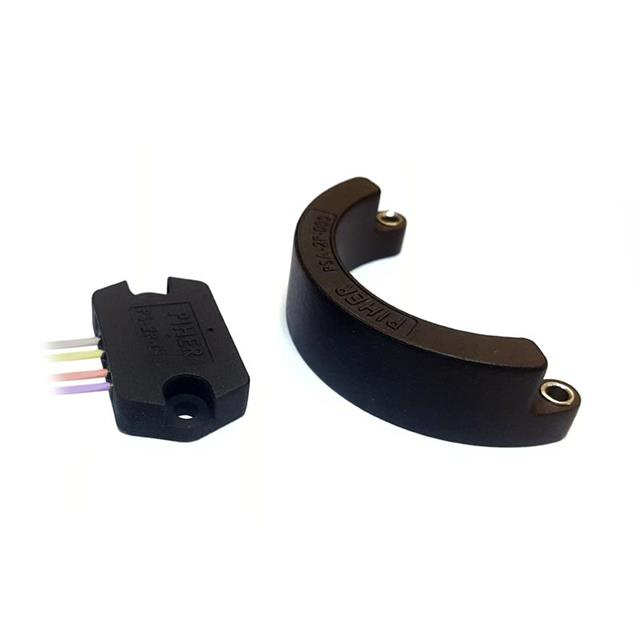

Amphenol Piher Sensing Systems_PS2P-ARC-CE-M009-A-110S-05
Amphenol Piher Sensing Systems_PS2P-ARC-CE-M009-A-110S-05
Amphenol Piher Sensing Systems

PS2P-ARC-CE-M009-A-110S-05

Sensors
Amphenol Piher Sensing Systems
PS2P-ARC-CE-M009-A-110S-05
54-PS2P-ARC-CE-M009-A-110S-05
Amphenol Piher Sensing Systems-PS2P-ARC-CE-M009-A-110S-05-datasheet-794165.pdf
Amphenol Piher Sensing Systems-PS2P-ARC-CE-M009-A-110S-05-datasheets-794165.pdf
ARC ANGULAR SENSOR, 12 BIT, ABSO
In Stock : 6

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $154.53000
    • $154.53
    • 10+
    • $141.65200
    • $1416.52
    ADD TO CART
    QUICK ORDER
    $154.53000    $154.53
    Description Tech Specifications Documents Shopping Guide

    PS2P-ARC-CE-M009-A-110S-05 Description

    Amphenol Piher Sensing Systems PS2P-ARC Serie, Rotary Position Sensors

    Tech Specifications

    Output Type
    Analog - Voltage
    Voltage Rating
    5 V
    Resistance Tolerance
    -
    Product
    Rotary Position Sensors
    Product Status
    Active
    Supplier Device Package
    -
    Rotation Angle - Electrical, Mechanical
    0° ~ 110°
    Measures
    Angle
    Package / Case
    Box with Wire Leads
    Technology
    Magnetoresistive
    Voltage - Supply
    4.5V ~ 5.5V
    Output
    Analog Voltage
    REACH Status
    REACH Unaffected
    Mfr
    Amphenol Piher Sensing Systems
    Maximum Operating Temperature
    + 125 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    Vendor Undefined
    Operating Temperature
    -40°C ~ 125°C
    Electrical Travel
    110 degrees
    Termination Style
    Wire Leads
    Actuator Type
    External Magnet, Not Included
    Tolerance
    10 %
    For Measuring
    Angle, Linear
    ECCN
    EAR99
    Mounting Type
    Chassis Mount
    Minimum Operating Temperature
    - 40 C
    Series
    PS2P-ARC
    Type
    Hall Effect Rotary Position Sensor
    IP Rating
    IP67, IP69K
    Output Signal
    Clockwise Increase
    Linearity
    ±1%
    HTSUS
    8543.70.4500
    Package
    Bulk
    USHTS
    8543704500
    Linear Range
    0 ~ 2.00mm (0 ~ 0.08")

    PS2P-ARC-CE-M009-A-110S-05 Documents

    Download datasheets PS2P-ARC-CE-M009-A-110S-05
