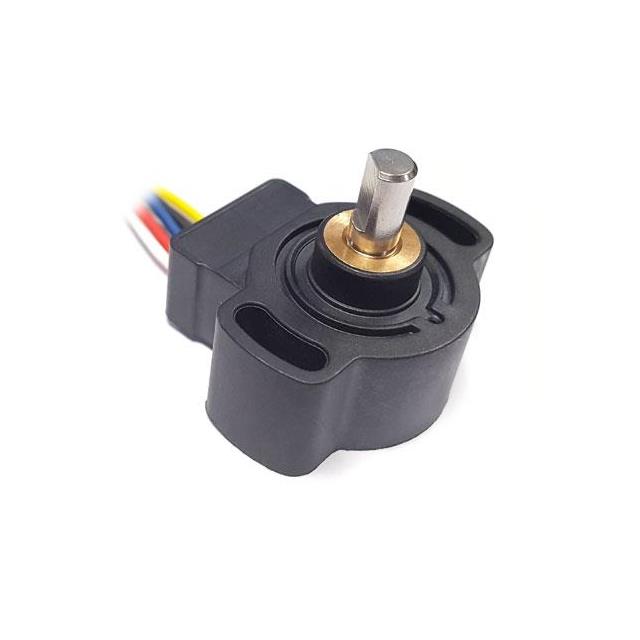

Amphenol Piher Sensing Systems_PSCM-A-02S-05
Amphenol Piher Sensing Systems_PSCM-A-02S-05
Amphenol Piher Sensing Systems

PSCM-A-02S-05

Sensors
Amphenol Piher Sensing Systems
PSCM-A-02S-05
54-PSCM-A-02S-05
Amphenol Piher Sensing Systems-PSCM-A-02S-05-datasheet-793524.pdf
Amphenol Piher Sensing Systems-PSCM-A-02S-05-datasheets-793524.pdf
COMPACT ROTARY SENSOR, 12 BIT MU
In Stock : 6

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $167.03000
    • $167.03
    • 10+
    • $153.11000
    • $1531.1
    ADD TO CART
    QUICK ORDER
    $167.03000    $167.03
    Description Tech Specifications Documents Shopping Guide

    PSCM-A-02S-05 Description

    Amphenol Piher Sensing Systems PSCM Serie, Rotary Position Sensors

    Tech Specifications

    Output Type
    Analog - Current or Voltage
    Voltage Rating
    5 V
    Resistance Tolerance
    -
    Product
    Rotary Position Sensors
    Product Status
    Active
    Supplier Device Package
    -
    Rotation Angle - Electrical, Mechanical
    0° ~ 360°
    Measures
    Position
    Package / Case
    Module, Flatted Shaft
    Technology
    Hall Effect
    Voltage - Supply
    4.5V ~ 5.5V
    Output
    Analog Voltage
    Mfr
    Amphenol Piher Sensing Systems
    Maximum Operating Temperature
    + 125 C
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    Vendor Undefined
    Operating Temperature
    -40°C ~ 125°C
    Termination Style
    Wire Leads
    Actuator Type
    Flatted Shaft
    For Measuring
    Angle, Linear, Rotary
    ECCN
    EAR99
    Mounting Type
    Panel Mount
    Minimum Operating Temperature
    - 40 C
    Series
    PSCM
    Output Signal
    Clockwise Increase
    Linearity
    ±1%
    HTSUS
    8543.70.9860
    Package
    Bulk
    USHTS
    8543704500
    Linear Range
    -

    PSCM-A-02S-05 Documents

    Download datasheets PSCM-A-02S-05
