CUI Inc.

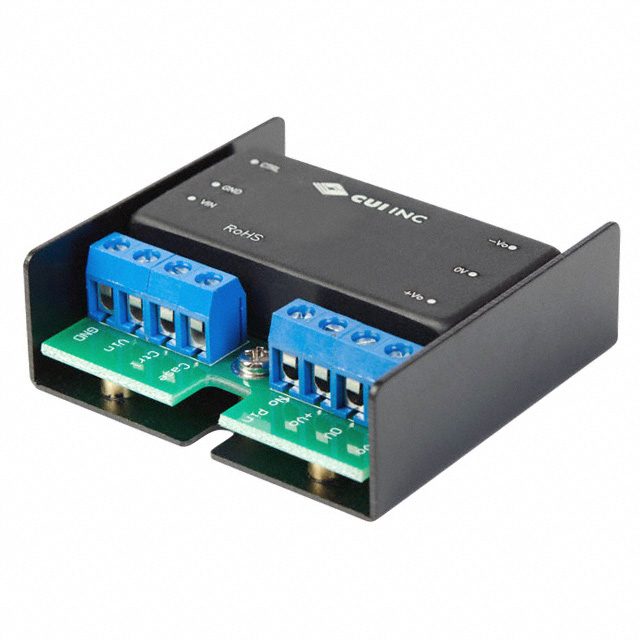

PYB20-Q24-D12-U
External/Internal DC DC Converters
PYB20-Q24-D12-U
50-PYB20-Q24-D12-U
DC/DC CONVERTER +/-12V 20W
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
PYB20-Q24-D12-U Description
PYB20-U (20W) Series, RoHS Compliant
Tech Specifications
Voltage - Input (Max)
36V
Current - Output (Max)
834mA, 834mA
Voltage - Input (Min)
9V
Efficiency
88%
REACH Status
REACH Unaffected
Manufacturer
CUI Inc.
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Operating Temperature
-40°C ~ 85°C
Applications
-
Voltage - Output 2
-12V
Voltage - Output 3
-
Voltage - Output 4
-
Approval Agency
EN, IEC
ECCN
EAR99
Voltage - Output 1
12V
Mounting Type
Chassis Mount
Size / Dimension
2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm)
Number of Outputs
2
Series
PYB20-U (20W)
Power (Watts)
20W
Type
Enclosed
Packaging
Tray
Part Status
Obsolete
HTSUS
8504.40.9580
Base Product Number
PYB20
PYB20-Q24-D12-U Documents
Download datasheets PYB20-Q24-D12-U
