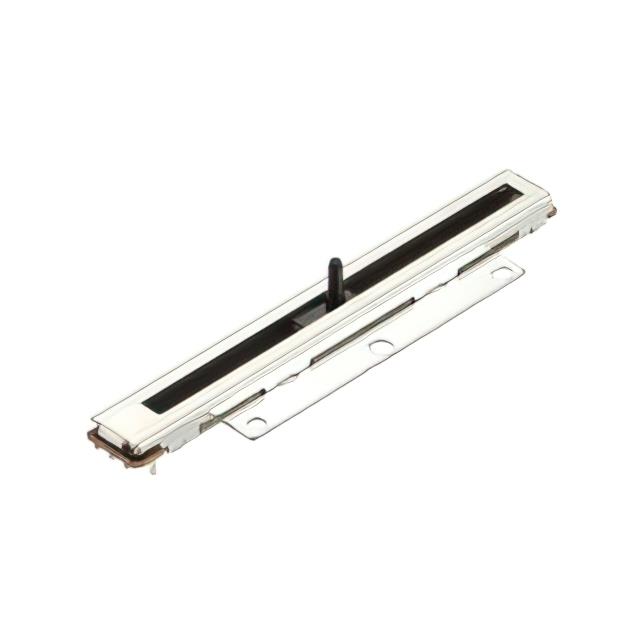

Alps Alpine_RDC1047A03
Alps Alpine_RDC1047A03
Alps Alpine

RDC1047A03

Sensors
Alps Alpine
RDC1047A03
54-RDC1047A03
Alps Alpine-RDC1047A03-datasheet-795306.pdf
Alps Alpine-RDC1047A03-datasheets-795306.pdf
RESISTIVE POSITION SENSORS LINEA
In Stock : 592

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $3.28150
    • $3.28
    • 10+
    • $3.19513
    • $31.95
    • 100+
    • $2.67700
    • $267.7
    • 1000+
    • $2.50430
    • $2504.3
    ADD TO CART
    QUICK ORDER
    $3.28150    $3.28
    Description Tech Specifications Documents Shopping Guide

    Tech Specifications

    Unit Weight
    0.551276 oz
    Voltage Rating
    5 V
    Product
    Rotary Position Sensors
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    Unknown
    Tradename
    SENSORING
    Resistance Tolerance (%)
    ±30
    Package / Case
    Module
    Technology
    Resistive
    Voltage - Supply
    5V
    Maximum Operating Supply Voltage (V)
    5
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Resistance (kohm)
    10
    Linearity Error (%)
    ±0.5
    Operating Temperature
    -30°C ~ 85°C
    Termination Style
    -
    For Measuring
    Linear Position
    ECCN
    EAR99
    Mounting Type
    Chassis Mount
    Pin Count
    3
    Mounting
    Screw
    Resistance
    10 kOhms
    Output Signal
    -
    Linearity
    ±0.5%
    Package
    Tray
    USHTS
    8533408070
    Linear Range
    0 ~ 47.00mm (0 ~ 1.85")
    Operating Life (Cycles)
    200000
    PCB changed
    3
    HTS
    COMPONENTS
    Output Type
    Analog - Voltage
    ECCN (US)
    EAR99
    Resistance Tolerance
    ±30%
    Supplier Device Package
    -
    Minimum Operating Temperature (°C)
    -30
    Maximum Operating Temperature (°C)
    85
    Rotation Angle - Electrical, Mechanical
    -
    Measures
    Angle
    Output
    Analog Voltage
    Package Height
    3.8(Max)
    Mfr
    Alps Alpine
    Height
    3.8 mm
    Maximum Operating Temperature
    + 85 C
    Width
    10.95 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Screw Mount
    Maximum Operating Force
    0.25N
    Actuator Type
    Linear Slide
    Package Length
    56.5
    Minimum Operating Temperature
    - 30 C
    Series
    RDC10
    Type
    Linear
    Length
    56.5 mm
    Part Status
    Active
    Package Width
    10.95

    RDC1047A03 Documents

    Download datasheets RDC1047A03
