XP Power

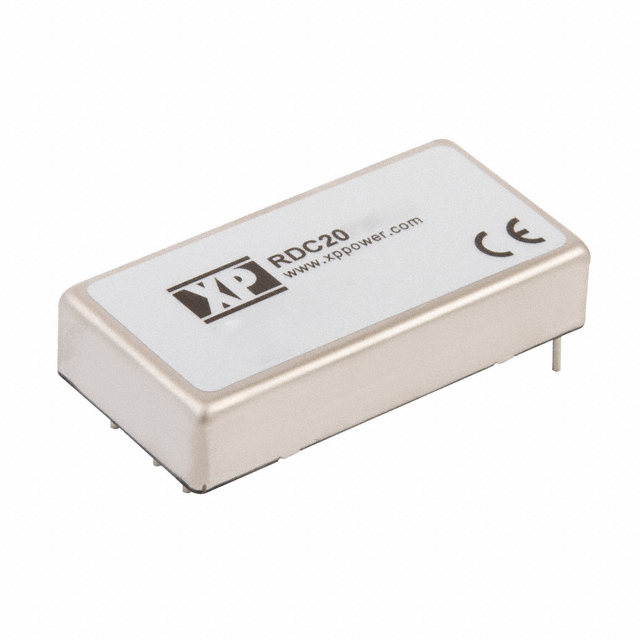

RDC20110D15
External/Internal DC DC Converters
RDC20110D15
50-RDC20110D15
RDC20110D15
In Stock : 6
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $105.70000
- $105.7
- 10+
- $102.40000
- $1024
- 100+
- $98.00000
- $9800
- 1000+
- $91.40010
- $91400.1
ADD TO CART
QUICK ORDER
$105.70000
$105.70
RDC20110D15 Description
RDC (20W) Series, ROHS3 Compliant
Tech Specifications
Voltage - Input (Max)
176V
Product
Isolated
Output Current-Channel 1
670 mA
Product Status
Active
Input Voltage - Max
176 V
RoHS
RoHS Compliant
Current - Output (Max)
670mA, 670mA
Output Current-Channel 2
670 mA
Voltage - Input (Min)
55V
Input Voltage - Min
55 V
Package / Case
6-DIP Module
Efficiency
85%
Mfr
XP Power
Height
10.16 mm (0.4 in)
Features
Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Width
25.4 mm (1 in)
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Mounting Style
Through Hole
Isolation Voltage
1.5 kV
Output Voltage-Channel 1
15 V
Operating Temperature
-40°C ~ 85°C
Output Voltage-Channel 2
- 15 V
Applications
Railway
Output Power
20 W
Voltage - Output 2
-15V
Voltage - Output 3
-
Voltage - Isolation
1.5 kV
ECCN
EAR99
Input Voltage, Nominal
110 V
Input Voltage
55 V to 176 V
Voltage - Output 1
15V
Mounting Type
Through Hole
Size / Dimension
2.00" L x 1.00" W x 0.42" H (50.8mm x 25.4mm x 10.6mm)
Number of Outputs
2
Series
RDC (20W)
Power (Watts)
20 W
Control Features
Enable, Active High
Type
Isolated Module
Length
50.8 mm (2 in)
Standard Number
62368-1
HTSUS
8504.40.9580
Package
Tube
USHTS
8504409510
Base Product Number
RDC20110
RDC20110D15 Documents
Download datasheets RDC20110D15
