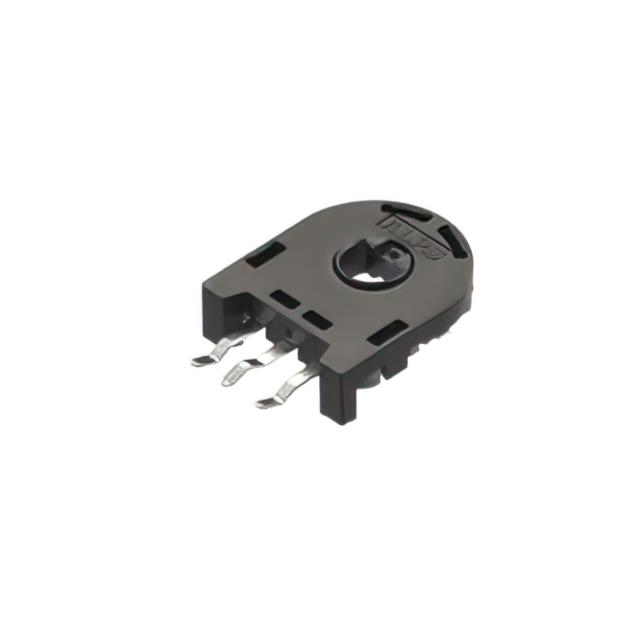

Alps Alpine_RDC502012A
Alps Alpine_RDC502012A
Alps Alpine

RDC502012A

Sensors
Alps Alpine
RDC502012A
54-RDC502012A
RESISTIVE POSITION SENSORS ROTAR
In Stock : 1283

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $1.84225
    • $1.84
    • 10+
    • $1.55136
    • $15.51
    • 100+
    • $1.45440
    • $145.44
    • 1000+
    • $1.35744
    • $1357.44
    ADD TO CART
    QUICK ORDER
    $1.84225    $1.84
    Description Tech Specifications Documents Shopping Guide

    RDC502012A Description

    Alps Alpine RDC50 Serie, Rotary Position Sensors

    Tech Specifications

    Unit Weight
    0.110134 oz
    PCB changed
    3
    HTS
    EA
    Output Type
    Analog - Voltage
    Voltage Rating
    5 V
    ECCN (US)
    EAR99
    Resistance Tolerance
    ±30%
    Product
    Rotary Position Sensors
    PPAP
    Unknown
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    Unknown
    Supplier Device Package
    -
    Rotation Angle - Electrical, Mechanical
    -
    Tradename
    SENSORING
    Measures
    Angle
    Package / Case
    3-SIP Module
    Technology
    Resistive
    Voltage - Supply
    5V
    Output
    Analog Voltage
    Package Height
    3.9
    Mfr
    Alps Alpine
    Maximum Operating Temperature
    + 120 C
    EU RoHS
    Compliant
    RoHS Status
    ROHS3 Compliant
    Resistance Range
    10 kOhms
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Linearity Error (%)
    ±2
    Operating Temperature
    -40°C ~ 120°C
    Termination Style
    SMD (SMT) Tab
    Actuator Type
    Hole for Shaft
    Tolerance
    30 %
    For Measuring
    Rotary Position
    ECCN
    EAR99
    Package Length
    13.5
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    - 40 C
    Pin Count
    3
    Mounting
    Surface Mount
    Resistance
    10 kOhms
    Series
    RDC50
    Output Signal
    -
    Linearity
    ±2%
    Part Status
    Active
    Package
    Tray
    Package Width
    11
    USHTS
    8533408070
    Linear Range
    -

    RDC502012A Documents

    Download datasheets RDC502012A
