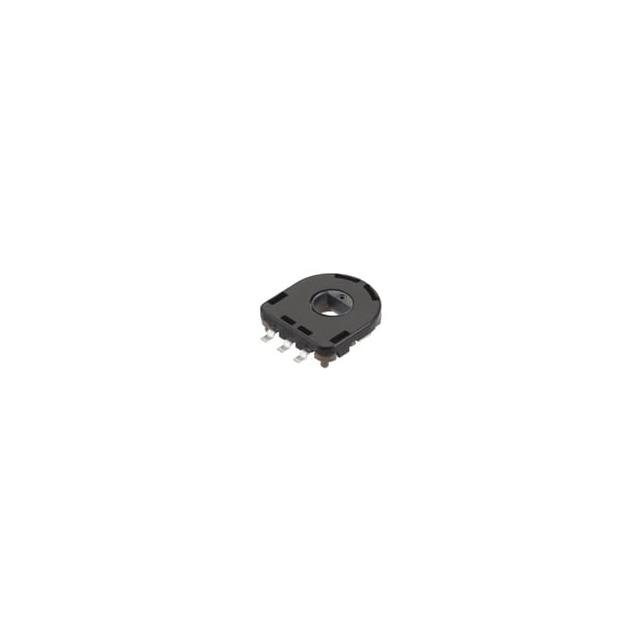

Alps Alpine_RDC506018A
Alps Alpine_RDC506018A
Alps Alpine

RDC506018A

Sensors
Alps Alpine
RDC506018A
54-RDC506018A
SENSOR ROTARY 333DEG SMD
In Stock : 56

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $1.00354
    • $1
    • 10+
    • $0.85118
    • $8.51
    • 30+
    • $0.76838
    • $23.05
    • 100+
    • $0.67399
    • $67.4
    • 500+
    • $0.55476
    • $277.38
    • 1200+
    • $0.53654
    • $643.85
    ADD TO CART
    QUICK ORDER
    $1.00354    $1.00
    Description Tech Specifications Documents Shopping Guide

    RDC506018A Description

    Alps Alpine RDC50 Serie, Rotary Position Sensors

    Tech Specifications

    Unit Weight
    0.152069 oz
    Voltage Rating
    5 V
    Product
    Rotary Position Sensors
    PPAP
    Unknown
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    Unknown
    Tradename
    SENSORING
    Package / Case
    4-SMD, Gull Wing
    Technology
    Resistive
    Voltage - Supply
    5V
    EU RoHS
    Compliant
    Resistance Range
    10 kOhms
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Linearity Error (%)
    ±2
    Operating Temperature
    -40°C ~ 120°C
    Termination Style
    SMD (SMT) Tab
    For Measuring
    Rotary Position
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Pin Count
    3
    Mounting
    Surface Mount
    Resistance
    10 kOhms
    Output Signal
    -
    Linearity
    ±2%
    HTSUS
    8533.40.8070
    Package
    Tape & Reel (TR)
    USHTS
    8533408070
    Linear Range
    -
    PCB changed
    3
    HTS
    EA
    Output Type
    Analog - Voltage
    ECCN (US)
    EAR99
    Resistance Tolerance
    ±30%
    Supplier Device Package
    -
    Rotation Angle - Electrical, Mechanical
    -
    Measures
    Angle
    Output
    Resistive
    Package Height
    3
    Mfr
    Alps Alpine
    Height
    3 mm
    Maximum Operating Temperature
    + 150 C
    Width
    13.2 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    SMD/SMT
    Actuator Type
    Hole for Shaft
    Tolerance
    30 %
    Package Length
    14.9
    Mechanical Travel
    320 deg
    Minimum Operating Temperature
    - 40 C
    Series
    RDC50
    Length
    11 mm
    Part Status
    Active
    Package Width
    11

    RDC506018A Documents

    Download datasheets RDC506018A
