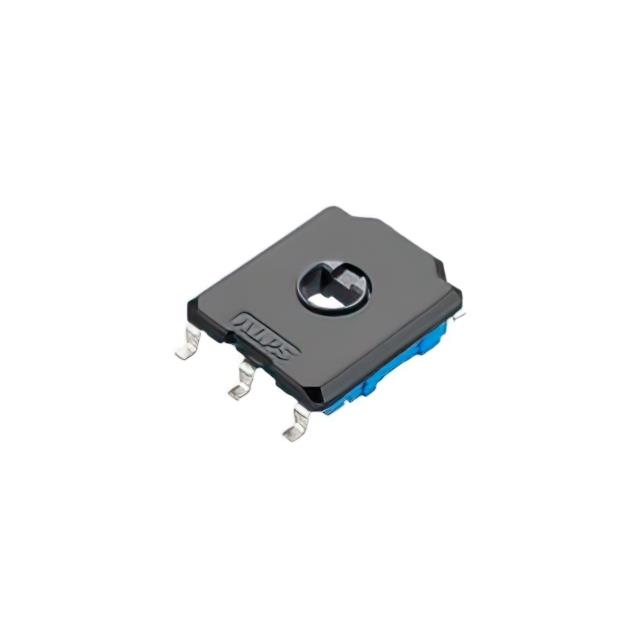

Alps Alpine_RDC9010006
Alps Alpine_RDC9010006
Alps Alpine

RDC9010006

Sensors
Alps Alpine
RDC9010006
54-RDC9010006
RESISTIVE POSITION SENSORS ROTAR
In Stock : 780

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $7.84778
    • $7.85
    • 10+
    • $6.88399
    • $68.84
    • 30+
    • $6.29777
    • $188.93
    • 100+
    • $5.80594
    • $580.59
    ADD TO CART
    QUICK ORDER
    $7.84778    $7.85
    Description Tech Specifications Documents Shopping Guide

    RDC9010006 Description

    Alps Alpine RDC90 Serie, Rotary Position Sensors

    Tech Specifications

    Unit Weight
    0.168198 oz
    Output Type
    Analog - Voltage
    Resistance Tolerance
    ±30%
    Product
    Rotary Position Sensors
    Product Status
    Active
    RoHS
    RoHS Compliant
    Supplier Device Package
    4-SMD
    Rotation Angle - Electrical, Mechanical
    -
    Tradename
    SENSORING
    Measures
    Angle
    Package / Case
    4-SMD, Gull Wing
    Technology
    Resistive
    Voltage - Supply
    5V
    Output
    Analog Voltage
    Mfr
    Alps Alpine
    Maximum Operating Temperature
    + 120 C
    RoHS Status
    ROHS3 Compliant
    Resistance Range
    3.3 kOhms
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 120°C
    Termination Style
    SMD (SMT) Tab
    Actuator Type
    Hole for Shaft
    Tolerance
    30 %
    For Measuring
    Rotary Position
    ECCN
    EAR99
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    - 40 C
    Resistance
    3.3 kOhms
    Series
    RDC90
    Output Signal
    -
    Linearity
    ±3%
    Package
    Tray
    USHTS
    8533408070
    Linear Range
    -

    RDC9010006 Documents

    Download datasheets RDC9010006
