RECOM Power

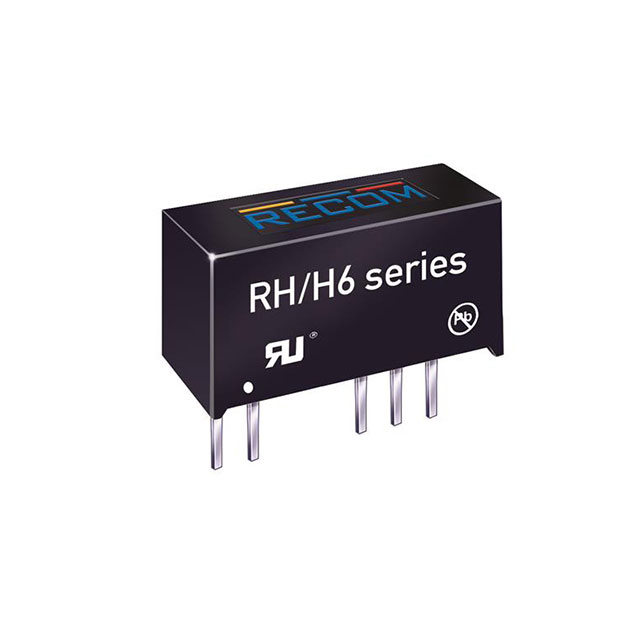

RH-1215D/H6
External/Internal DC DC Converters
RH-1215D/H6
50-RH-1215D/H6
RH-1215D/H6
In Stock : 30
Not available
QUICK RFQ
ADD TO RFQ LIST
- 1+
- $9.43080
- $9.43
- 10+
- $8.51820
- $85.18
- 100+
- $8.36604
- $836.6
- 1000+
- $8.21394
- $8213.94
ADD TO CART
QUICK ORDER
$9.43080
$9.43
RH-1215D/H6 Description
ECONOLINE RH/H6 (1W) Series, ROHS3 Compliant
Tech Specifications
Unit Weight
0.095240 oz
Compliance
CB; CAN/CSA; EAC; IEC; REACH; RoHS; UL
Product
Isolated
Product Status
Active
RoHS
RoHS Compliant
Current - Output (Max)
33mA, 33mA
Industry
Industrial
Voltage - Input (Min)
10.8V
Tradename
Econoline
Package / Case
7-SIP Module, 5 Leads
Efficiency
80%
REACH Status
REACH Unaffected
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Isolation Voltage
6.4 kV
Operating Temperature
-40°C ~ 90°C
Output Power
1 W
Voltage - Output 2
-15V
Voltage - Output 3
-
Voltage - Isolation
6.4 kV
ECCN
EAR99
Input Voltage
10.8 V to 13.2 V
Voltage - Output 1
15V
Mounting Type
Through Hole
Size / Dimension
0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Power (Watts)
1 W
HTSUS
8504.40.9580
Package
Tube
USHTS
8504409580
Voltage - Input (Max)
13.2V
Output Current-Channel 1
33 mA
Input Voltage - Max
13.2 V
Output Current-Channel 2
33 mA
Input Voltage - Min
10.8 V
Mfr
Recom Power
Height
10.2 mm (0.402 in)
Features
SCP
Maximum Operating Temperature
+ 90 C
Width
7.05 mm (0.278 in)
RoHS Status
ROHS3 Compliant
Mounting Style
Through Hole
Output Voltage-Channel 1
15 V
Output Voltage-Channel 2
- 15 V
Applications
ITE (Commercial)
Input Voltage, Nominal
12 V
Minimum Operating Temperature
- 40 C
Number of Outputs
2
Series
ECONOLINE RH/H6 (1W)
Type
Isolated Module
Length
19.65 mm (0.774 in)
Base Product Number
RH-1215
RH-1215D/H6 Documents
Download datasheets RH-1215D/H6
