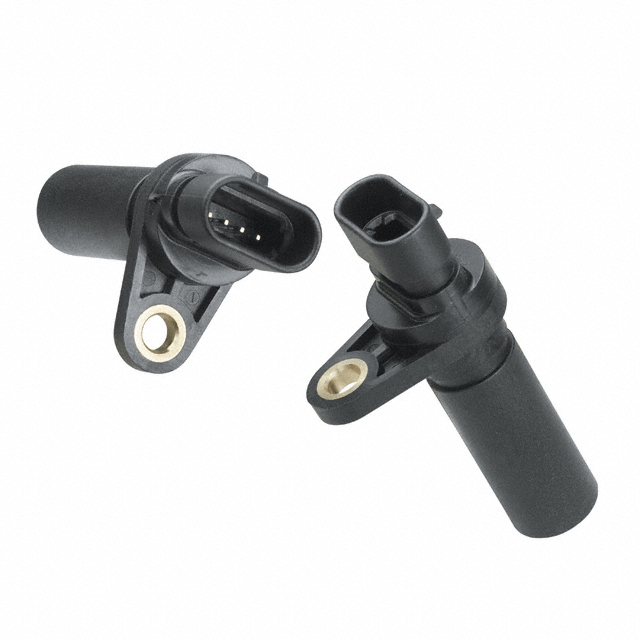

ZF Electronics_SD101201
ZF Electronics_SD101201
ZF Electronics

SD101201

Sensors
ZF Electronics
SD101201
54-SD101201
ZF Electronics-SD101201-datasheet-853375.pdf
ZF Electronics-SD101201-datasheets-853375.pdf
SENSOR HALL DIGITAL CONNECTOR
In Stock : 142

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $51.54000
    • $51.54
    • 10+
    • $42.95000
    • $429.5
    • 100+
    • $38.04160
    • $3804.16
    • 1000+
    • $36.81450
    • $36814.5
    ADD TO CART
    QUICK ORDER
    $51.54000    $51.54
    Description Tech Specifications Documents Shopping Guide

    SD101201 Description

    ZF Electronics SD1012 Serie

    Tech Specifications

    Unit Weight
    1.538156 oz
    HTS
    9031.80.80.85
    Output Type
    Digital
    ECCN (US)
    EAR99
    Module/IC Classification
    Module
    PPAP
    No
    Magnetic Type
    Latch
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    125
    Package / Case
    Flange Mount
    Voltage - Supply
    4.75V ~ 24V
    REACH Status
    REACH Unaffected
    Mfr
    ZF Electronics
    Maximum Operating Supply Voltage (V)
    24
    EU RoHS
    Compliant
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 125°C (TA)
    Must Release
    -
    Must Operate
    -
    Termination Style
    Connector
    Maximum Supply Current (uA)
    20000
    ECCN
    EAR99
    Package Length
    76.2
    Mounting
    Screw
    Series
    SD1012
    Type
    Hall Effect Sensor
    Part Status
    Active
    Frequency
    15 kHz
    Maximum Output Current (mA)
    20
    Typical Operating Supply Voltage (V)
    12|15|18|5|9
    HTSUS
    8543.70.9860
    Package
    Box
    Package Width
    24.8
    USHTS
    8543704500
    Actuator Material
    Ferrous Metals, Gear Tooth
    Minimum Operating Supply Voltage (V)
    4.75

    SD101201 Documents

    Download datasheets SD101201
