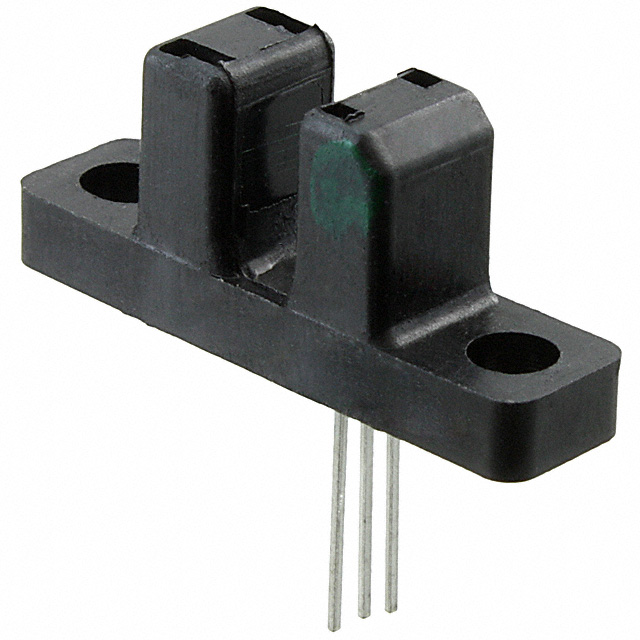

ZF Electronics_VN101501
ZF Electronics_VN101501
ZF Electronics

VN101501

Sensors
ZF Electronics
VN101501
54-VN101501
ZF Electronics-VN101501-datasheet-853244.pdf
ZF Electronics-VN101501-datasheets-853244.pdf
SENSOR HALL DIGITAL PC PIN
In Stock : 1537

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $7.86640
    • $7.87
    • 10+
    • $6.80340
    • $68.03
    • 100+
    • $6.37816
    • $637.82
    • 1000+
    • $5.95294
    • $5952.94
    ADD TO CART
    QUICK ORDER
    $7.86640    $7.87
    Description Tech Specifications Documents Shopping Guide

    VN101501 Description

    ZF Electronics VN1015 Serie

    Tech Specifications

    Output Type
    Digital
    Sensing Distance
    -
    Output Configuration
    Digital
    Sensing Method
    Magnetic
    Product Status
    Active
    RoHS
    RoHS Compliant
    Operating Supply Current
    6 mA
    Package / Case
    Slotted Body
    Voltage - Supply
    4.5V ~ 24V
    REACH Status
    REACH Unaffected
    Mfr
    ZF Electronics
    Height
    10.8 mm
    Maximum Operating Temperature
    + 85 C
    Width
    6.35 mm
    RoHS Status
    ROHS3 Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Mounting Style
    Through Hole
    Operating Temperature
    -40°C ~ 85°C (TA)
    Must Release
    -
    Must Operate
    -
    Termination Style
    PC Pin
    ECCN
    EAR99
    Minimum Operating Temperature
    - 40 C
    Series
    VN1015
    Type
    Hall Effect Sensor
    Length
    24.77 mm
    Operating Supply Voltage
    24 V
    HTSUS
    8543.70.9860
    Package
    Box
    USHTS
    8543704500
    Actuator Material
    Ferrous Vane

    VN101501 Documents

    Download datasheets VN101501
