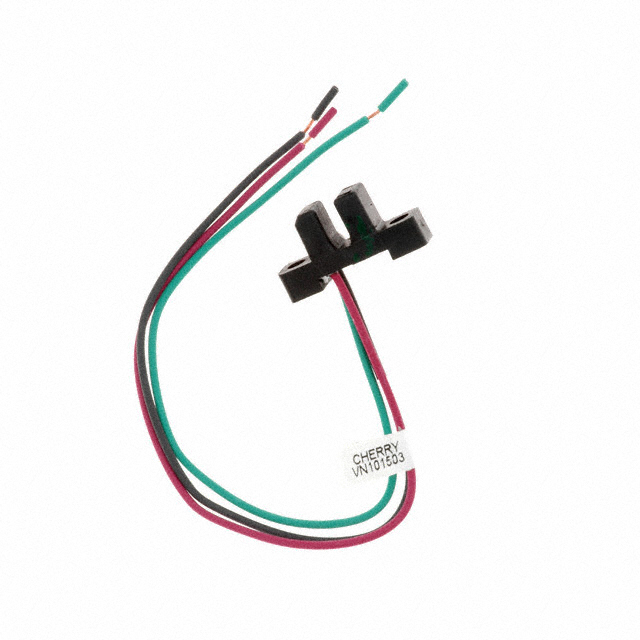

SENSOR HALL DIGITAL WIRE LEADS
In Stock : 205

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $10.64540
    • $10.65
    ADD TO CART
    QUICK ORDER
    $10.64540    $10.65
    Description Tech Specifications Documents Shopping Guide

    VN101503 Description

    ZF Electronics VN1015 Serie

    Tech Specifications

    Unit Weight
    0.404857 oz
    Sensing Distance
    -
    Module/IC Classification
    Module
    PPAP
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Package / Case
    Slotted Body
    Voltage - Supply
    4.5V ~ 24V
    Maximum Operating Supply Voltage (V)
    24
    EU RoHS
    Compliant
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -40°C ~ 85°C (TA)
    Must Release
    -
    Termination Style
    Wire Leads
    ECCN
    EAR99
    Pin Count
    3
    Mounting
    Screw
    Typical Operating Supply Voltage (V)
    12|15|18|24|5|9
    HTSUS
    8543.70.9860
    Package
    Box
    USHTS
    8543704500
    PCB changed
    3
    HTS
    8542.39.00.60
    Output Type
    Digital
    ECCN (US)
    EAR99
    Magnetic Type
    Bipolar
    Output Configuration
    Digital
    Sensing Method
    Magnetic
    Minimum Operating Temperature (°C)
    -40
    Maximum Operating Temperature (°C)
    85
    Operating Supply Current
    6 mA
    Package Height
    10.8
    Mfr
    ZF Electronics
    Height
    10.8 mm
    Maximum Operating Temperature
    + 85 C
    Width
    6.35 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Wire
    Must Operate
    -
    Maximum Supply Current (uA)
    7500
    Package Length
    24.77
    Minimum Operating Temperature
    - 40 C
    Series
    VN1015
    Type
    Hall Effect Sensor
    Length
    24.77 mm
    Operating Supply Voltage
    24 V
    Part Status
    Active
    Maximum Output Current (mA)
    25
    Package Width
    6.35
    Actuator Material
    Ferrous Vane
    Minimum Operating Supply Voltage (V)
    3.8

    VN101503 Documents

    Download datasheets VN101503
