TDK-Lambda, Inc.

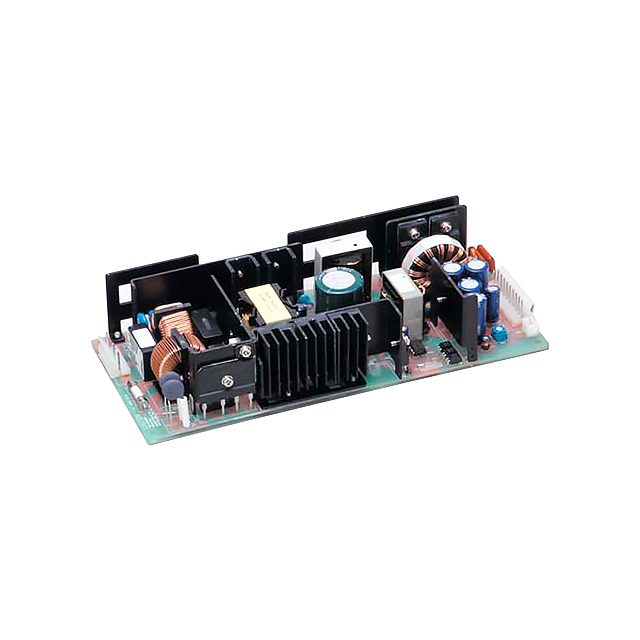

ZWD225PAF-0524/JA
External/Internal AC DC Converters
ZWD225PAF-0524/JA
47-ZWD225PAF-0524/JA
AC/DC CONVERTER 5V 24V 225W
In Stock : Please Submit RFQ TO US
Not available
QUICK RFQ
ADD TO RFQ LIST
ZWD225PAF-0524/JA Description
ZWD-PAF (225W) Series, RoHS Compliant
Tech Specifications
Efficiency
81%
REACH Status
REACH Unaffected
Mfr
TDK-Lambda
Features
Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
RoHS Status
RoHS Compliant
Voltage - Input
85 ~ 265 VAC
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Voltage - Output 6
-
Operating Temperature
-10°C ~ 70°C (With Derating)
Applications
ITE (Commercial)
Voltage - Output 2
24V
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Isolation
3 kV
Approval Agency
CE
Minimum Load Required
-
ECCN
EAR99
Voltage - Output 1
5V
Mounting Type
Chassis Mount
Size / Dimension
8.74" L x 3.74" W x 1.77" H (222.0mm x 95.0mm x 45.0mm)
Number of Outputs
2
Current - Output 2
9 A
Series
ZWD-PAF (225W)
Power (Watts)
225W
Current - Output 1
5 A
Type
Enclosed
Packaging
Bulk
Part Status
Last Time Buy
HTSUS
8504.40.9530
Base Product Number
ZWD225
ZWD225PAF-0524/JA Documents
Download datasheets ZWD225PAF-0524/JA
