NKK Switches_DSBA1P
NKK Switches_DSBA1P
NKK Switches

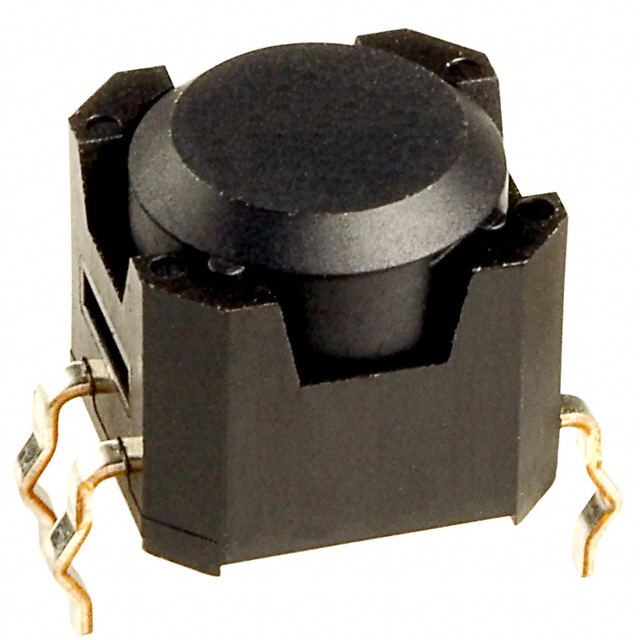

DSBA1P

Sensors
NKK Switches
DSBA1P
54-DSBA1P
NKK Switches-DSBA1P-datasheet-756579.pdf
NKK Switches-DSBA1P-datasheets-756579.pdf
SENSOR TILT SW 30-60DEG 20MA TH
In Stock : 164

Not available

QUICK RFQ
ADD TO RFQ LIST
ampheo flow
  • Quantity
  • Unit Price
  • Ext. Price
    • 1+
    • $5.58275
    • $5.58
    • 10+
    • $5.07526
    • $50.75
    • 100+
    • $4.70307
    • $470.31
    • 1000+
    • $4.36472
    • $4364.72
    ADD TO CART
    QUICK ORDER
    $5.58275    $5.58
    Description Tech Specifications Documents Shopping Guide

    DSBA1P Description

    NKK Switches DS Serie

    Tech Specifications

    Unit Weight
    0.031747 oz
    Voltage Rating DC
    5 VDC
    PPAP
    No
    Product Status
    Active
    RoHS
    RoHS Compliant
    Automotive
    No
    Package / Case
    PCB Mount
    Voltage - Supply
    5V
    REACH Status
    REACH Unaffected
    EU RoHS
    Compliant
    Insulation Resistance
    50 MOhms
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Operating Temperature
    -25°C ~ 80°C
    Operating Angle
    ±30° ~ ±60°
    Return Angle
    10 deg
    Termination Style
    PC Pin
    Dielectric Strength
    250 VAC
    ECCN
    EAR99
    Mounting Type
    Through Hole, Straight
    Pin Count
    4
    Mounting
    Through Hole
    Lamp Type
    -
    Illuminated
    Non-Illuminated
    Life
    1000000 Cycle
    HTSUS
    8536.50.9065
    Package
    Tray
    USHTS
    8536509065
    PCB changed
    4
    HTS
    8536.50.90.65
    Output Type
    NPN
    ECCN (US)
    EAR99
    Current - Output
    20mA
    Package Height
    8.8
    Mfr
    NKK Switches
    Height
    8.8 mm
    Features
    Totally sealed body construction prevents contact contamination
    Maximum Operating Temperature
    + 80 C
    Width
    9.5 mm
    RoHS Status
    ROHS3 Compliant
    Mounting Style
    Through Hole
    Actuator Type
    Rolling Ball
    Current Rating
    50 mA
    Package Length
    19.5
    Contact Form
    SPST
    Minimum Operating Temperature
    - 25 C
    Series
    DS
    Length
    10 mm
    Illumination Color
    -
    Part Status
    Active
    Package Width
    10
    Base Product Number
    DSBA1
